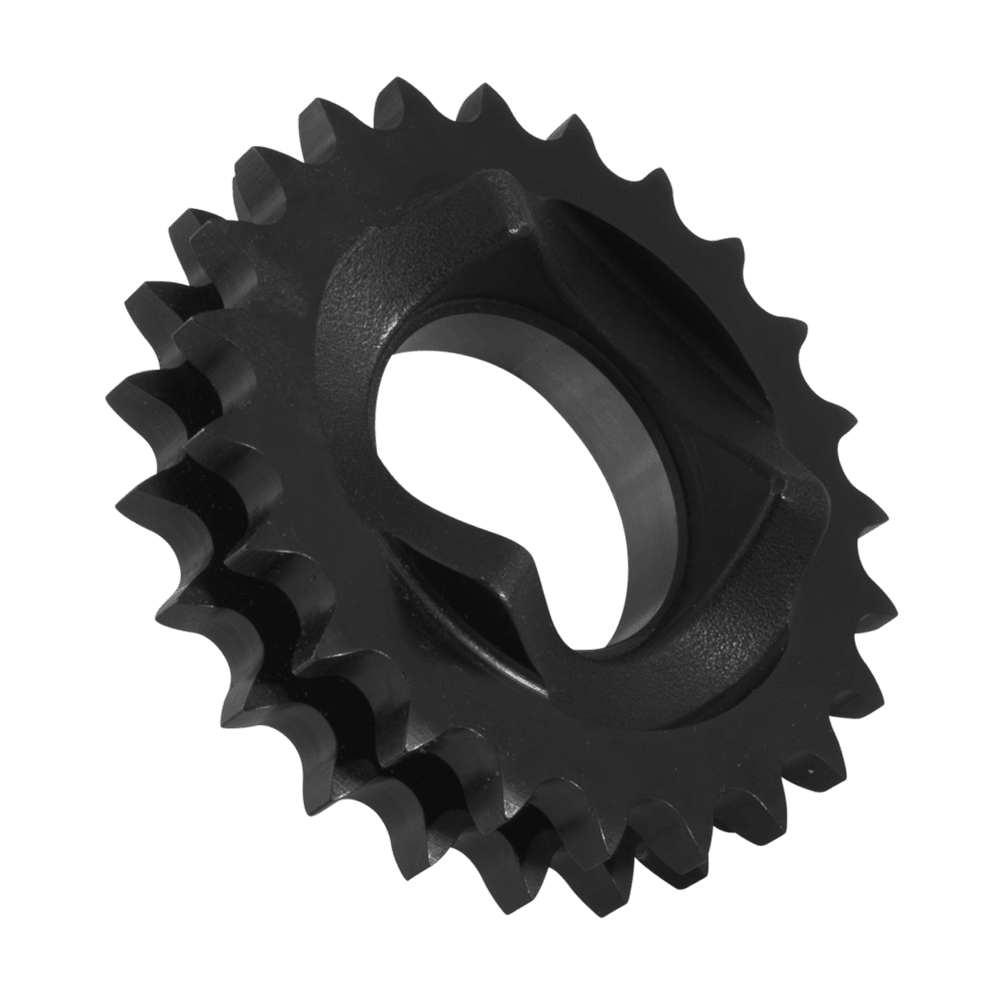

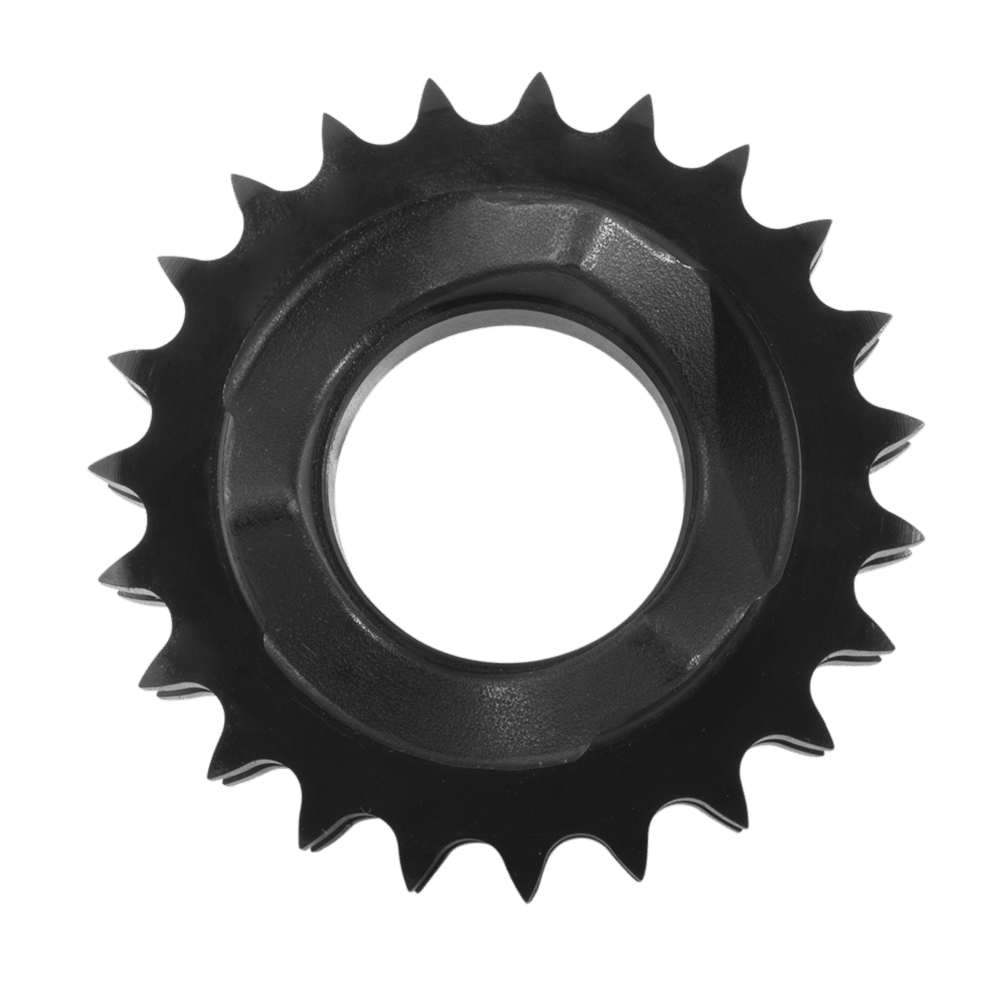

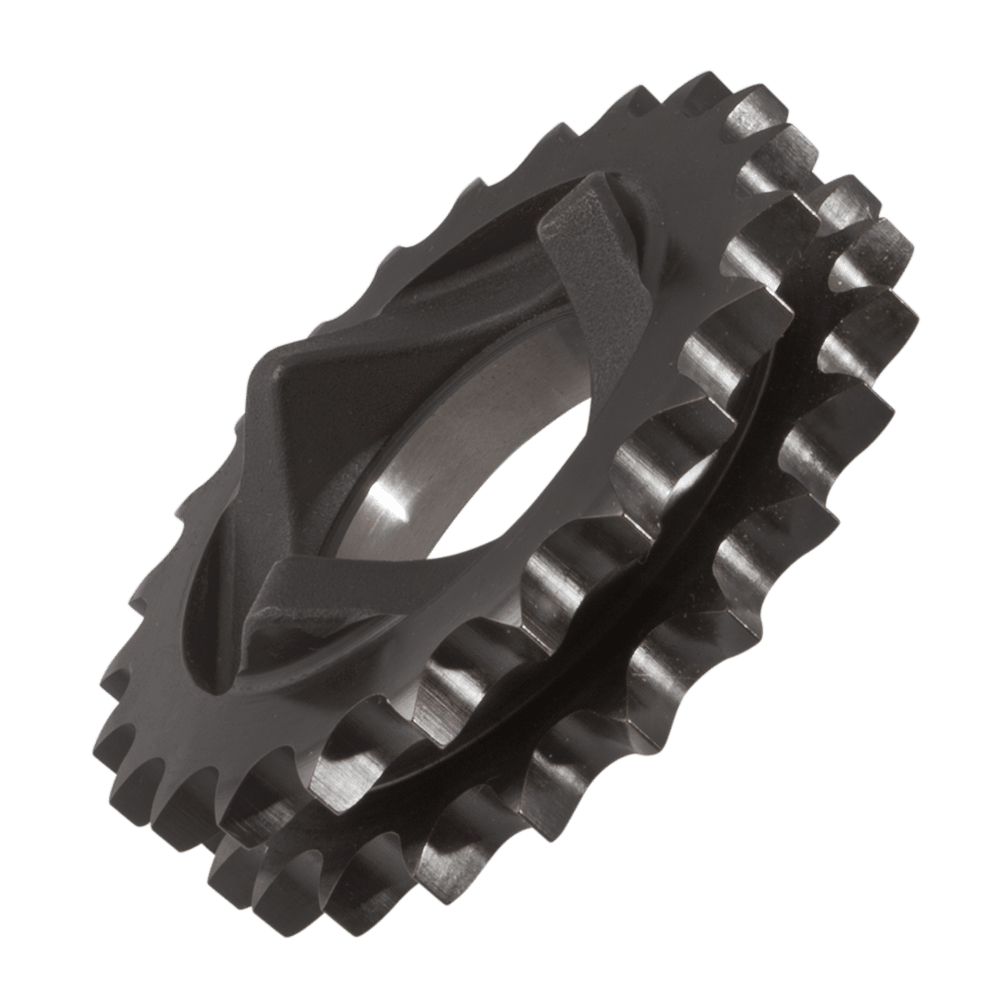

Early Model Comp Sprocket

Sprocket for the 1985-2006 (except 06 Dyna) compensator.



Sprocket & Chain Matrix

  • American made heat treated sprockets, which will help with torque increases.
  • 21 tooth 19% increase
  • 22 tooth 14% increase
  • 23 tooth 9% increase

Benefits
It’s common knowledge that engine upgrades like a cam, carburetor, or bigger cubes can increase torque to the rear wheel. But the easiest and most inexpensive way to increase torque to the rear wheel, with no sacrifice in dependability, is to change your primary gearing by changing the compensating sprocket.

Includes the sprocket only. You have a stock 1999 carbureted Road King. By going from a stock 25 to a BAKER 23 tooth compensating sprocket, the torque at the rear wheel will increase by 9%. This eliminates the overall drive ratio performance advantage of fuel injected Road Kings. Changing the primary drive ratio affects the overall torque multiplication to the rear wheel. Decreasing the number of teeth on the compensating sprocket increases torque to the rear wheel and improves acceleration and performance. The trade-off for this performance improvement is an increase in the highway cruising RPM with no transmission change. If a BAKER 6-speed transmission is installed along with a new compensating sprocket, the increase in performance will be realized along with a lower highway cruising RPM than with a stock 5-speed.



Sprocket & Chain Matrix

Standard Gear Case Finish Examples (Not applicable to all products)

Chrome

Polished

Raw

Wrinkle Black

These example finishes are intended to show the exterior treatments of cases, top covers and doors.

TERM AND CONDITIONS

  • BAKER Drivetrain reserves the right to change prices, terms or policies at any time without notice.
  • Orders can be pre-paid using Visa, MasterCard, American Express, Discover or PayPal.
  • All orders not pre-paid will be sent C.O.D. certified check or money order only unless pre-approved for company check acceptance.
  • Any orders from outside the USA must be pre-paid in US funds via wire transfer; a $30 transfer fee will apply.
  • Prices shown are F.O.B. Haslett, MI.

LIMITED WARRANTY POLICY

BAKER™ transmission assemblies, transmission kits, primaries, and oil pans are guaranteed to the original purchaser to be free of manufacturing defects in materials and workmanship for a period of 5 years from the date of purchase or up to 50,000 miles. BAKER™ clutches, kicker cover kits, belt drives, F6F kit, reverse systems, covers and accessories are guaranteed to the original purchaser to be free of manufacturing defects in materials and workmanship for a period of 2 years from the date of purchase or up to 24,000 miles - whichever occurs first. If the product is found by BAKER™ to be defective, such products will, at the option of BAKER™, be replaced or repaired at cost to BAKER™.

In the event warranty service is required, the original purchaser must call or write BAKER™ immediately with a description of the problem. If it is deemed necessary for BAKER™ to make an evaluation to determine whether the transmission assembly or transmission kit or accessory is defective, the entire transmission assembly, whether originally purchased as an assembly or kit, must be properly packaged and returned prepaid to BAKER™ with a copy of the original invoice of purchase. If after an evaluation has been made by BAKER™ and a defect in materials and/or workmanship is found, BAKER™  will, at BAKER™  option, repair or replace the defective part of the assembly.

WARRANTIES FOR "INSIDER SPECIAL" PRODUCTS

Due to the uniqueness, low price and assembly outside of typical production process of products indicated as Insider Special products, purchasing these Insider Special products include a warranty so to guarantee the original purchaser to be free of manufacturing defects in materials and workmanship for a period of 1 year from the date of purchase or up to 12,000 miles. We have provided extended options for you to purchase below.

RETURNS AND EXCHANGES

Any merchandise returned for any reason (exchange, credit or modification) must be accompanied by a Return Goods Authorization (RGA) number or it will be refused. Call BAKER™ to obtain this number prior to returning goods for any reason. There is a 15% re-stocking fee for all returned items. BAKER™ is not liable for any shipping charges.

ADDITIONAL WARRANTY PROVISIONS

NOTE: Limited warranty does not cover labor or other costs or expenses incidental to the repair and or replacement of BAKER™ products.

This warranty does not apply if one or more of the following situations is judged by BAKER™ to be relevant: BAKER™ OEM transmissions; (these are subject to the OEM manufactures warranty only), Improper installation, accident, modification (including but not limited to use of unauthorized parts, transmission oils or lubricants), racing, high performance application, mishandling, misapplication, neglect (including but not limited to improper maintenance), or improper repair.

BAKER™ shall not be liable for any consequential or incidental damages arising out of or in connection with a BAKER™ transmission assembly, transmission kit, component or part. Consequential damages shall include without limitation, loss of use, income or profit, or losses sustained as the result of injury (including death) to any person or loss of or damage to property.

BAKER™ transmissions, transmission kits and accessories are designed exclusively for use in American V-Twin motorcycles. BAKER™ shall have no warranty or liability obligation if BAKER™ parts are used in any other application.

If it is determined that a BAKER™ product has been disassembled during the warranty period for any reason, this limited warranty will no longer apply unless you were instructed to do so by a BAKER Drivetrain technician for diagnostic purposes.

The words H-D®, Softail®, FXR®, Dyna®, FLT®, FLH®, Sportster®, and Buell® are registered trademarks and are for reference only.

Questions? Ask us anything:
Contact us
Or just call us at 517-339-3835. We're glad to help.
