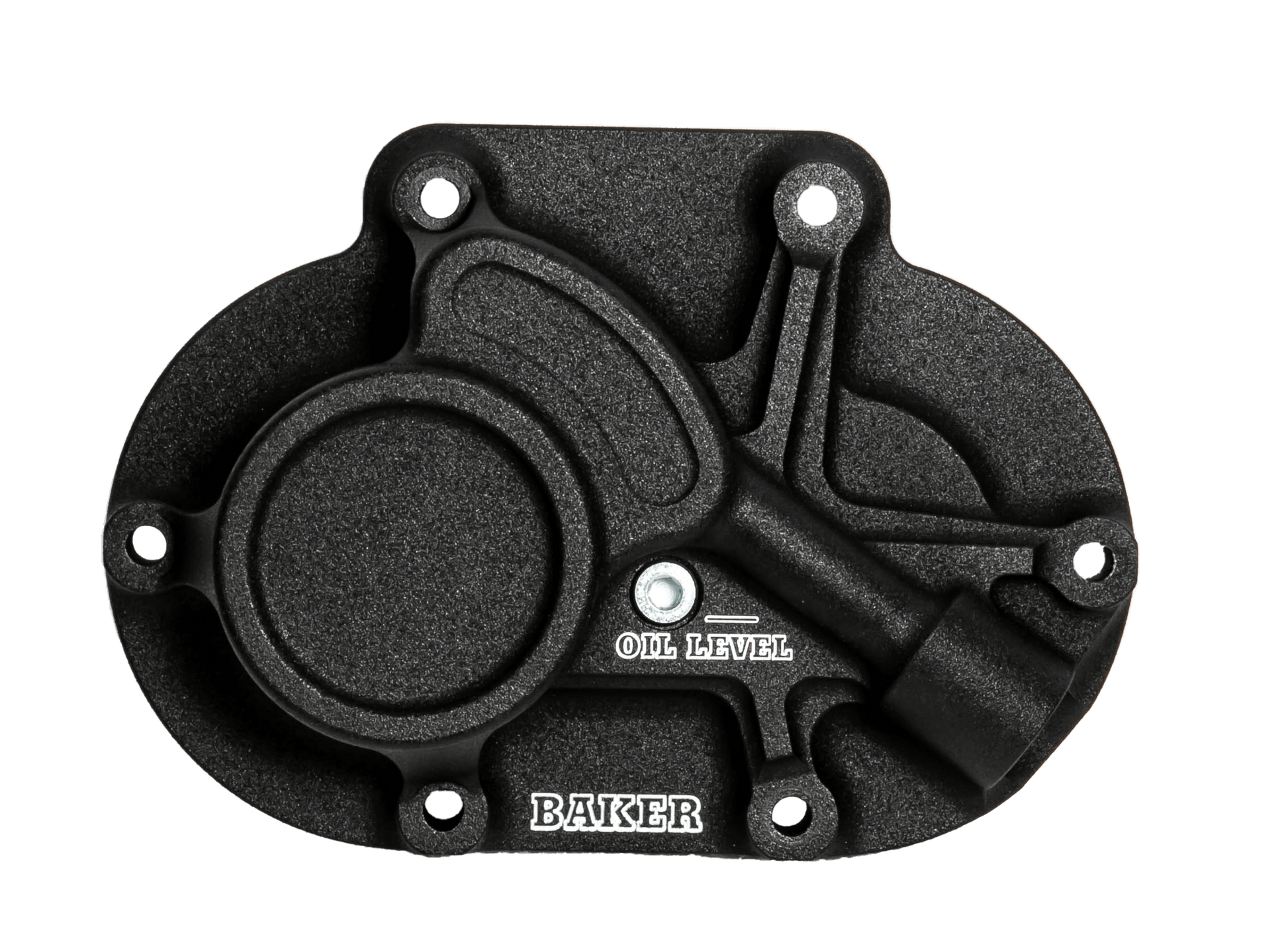

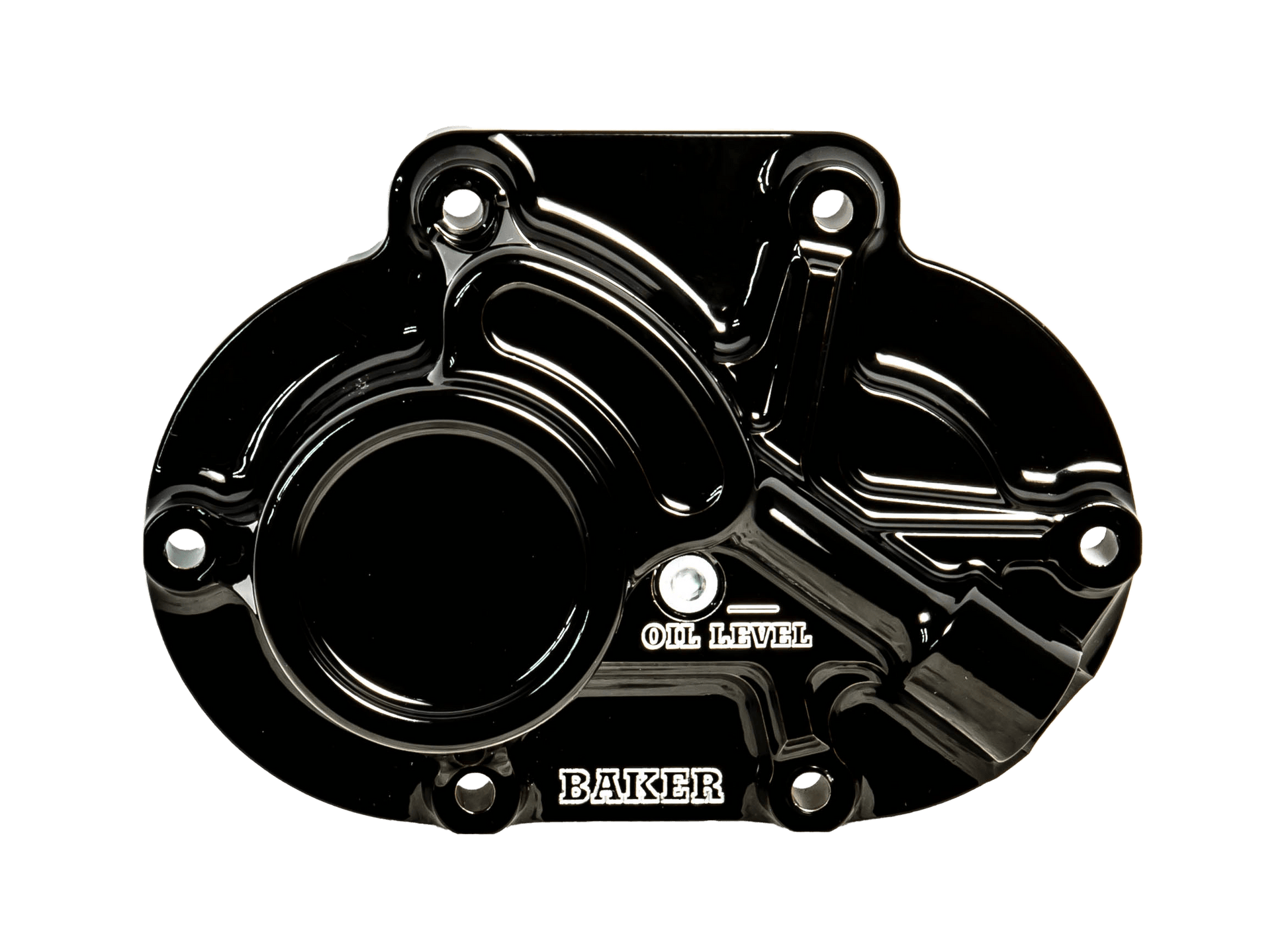

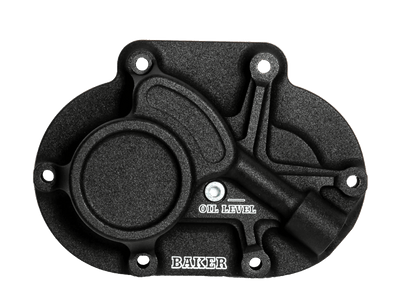

The BAKER Cable-Type Side Cover

The NEW BAKER Cable-Type Side Cover was designed with minimal waste and purposeful mechanical intent. Machined from certified 6061-T6 Billet Aluminum, compatible with OEM or aftermarket transmissions. The BAKER Cable-Type Side Cover can be used with the factory throwout bearing, but we highly recommend upgrading to the BAKER Heavy Duty Throwout Bearing Kit.

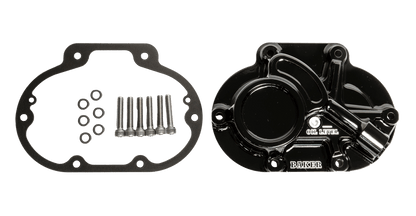

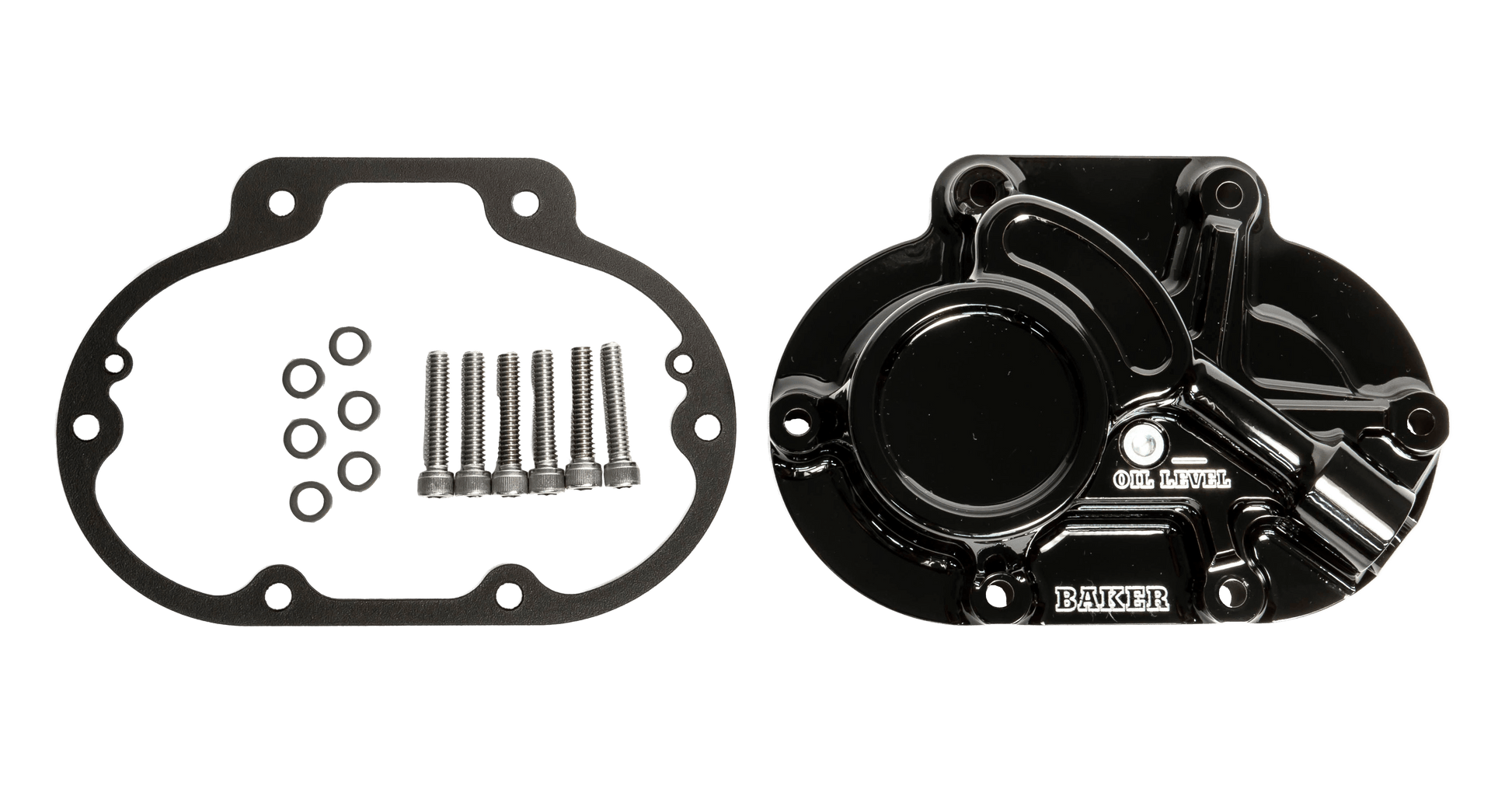

Kit Includes-

  • BAKER Cable Side Cover
  • Fasteners and related hardware
  • Washers
  • Side cover gasket
  • Vacuum-formed, American-made, certified 6061-T6 Billet Aluminum
  • Spatial envelope is significantly smaller than the OEM cable side cover
  • Convenient side transmission fill port
  • Utilizes the stock clutch cable, ball, and ramp
  • Available in Gloss Black or Wrinkle Black
  • Minimalistic design with maximum exhaust pipe clearance
  • Can be used with the O.E.M. throwout bearing. Recommend upgrade to the BAKER Heavy Duty Throwout Bearing Kit (PN TBK-56L)
  • Designed to be used as an O.E.M. replacement, even for hydraulic actuated applications
  • 2007-Later Softail & Touring applications**
    • Compatible with cable-operated clutch
    • Compatible with hydraulic clutch retrofits*
  • 2006-2017 Dyna applications
    • Compatible with cable-operated clutch
    • Compatible with hydraulic clutch retrofits*


*Systemic O.E.M. clutch actuator parts are required. Additional components needed to switch to a cable-type side cover-

  • Clutch cable and lever perch - part number depends on the model
  • 37090-98A - clutch adjuster rod
  • 37089-84 - throw-out rod
  • 37092-06 - center rod
  • 37903-90 - release plate
  • 36258 - jam nut
  • The BAKER Cable-Type Side Cover
  • TBK-56L - Heavy Duty Throwout Bearing Kit



BAKER Drivetrain reserves the right to change prices, terms or policies at any time without notice. Orders can be pre-paid using Visa, MasterCard, American Express, Discover or PayPal. All orders not pre-paid will be sent C.O.D. certified check or money order only unless pre-approved for company check acceptance. Any orders from outside the USA must be pre-paid in US funds via wire transfer; a $30 transfer fee will apply. Prices shown are F.O.B. Haslett, MI.


BAKER™ transmission assemblies and transmission builder 's kits, are guaranteed to the original purchaser to be free of manufacturing defects in materials and workmanship for a period of 5 years from the date of purchase or up to 50,000 miles, whichever occurs first. All other BAKER products are guaranteed to the original purchaser to be free of manufacturing defects in materials and workmanship for a period of 2 years from the date of purchase or up to 24,000 miles, whichever occurs first, except for the following; Warranty does not cover clutch plate wear, throw out bearing failures or mainshaft breakage due to improper clutch nut installation.Electrical components carry a 30-day warranty; cosmetic finishes (chrome plating, hard anodizing, powder coating) are covered for 60 days. Certain promotional products may carry a shorter warranty as specified at the time of purchase. If the product is found by BAKER to be defective, such products will, at the option of BAKER, be replaced or repaired at cost to BAKER.In the event warranty service is required, the original purchaser must call or write BAKER immediately with a description of the problem. If it is deemed necessary for BAKER to make an evaluation to determine whether the transmission assembly or transmission kit or accessory is defective, the entire transmission assembly, whether originally purchased as an assembly or kit, must be properly packaged and returned prepaid to BAKER with a copy of the original purchase invoice. If after evaluation by BAKER a defect in materials and/or workmanship is found, BAKER will, at their option, repair or replace the defective part of the assembly.


Returns are permitted within 90 days of the delivery date. Any merchandise returned for any reason (exchange, credit or modification) must be accompanied by a Return Goods Authorization (RGA) number or it will be refused. Call BAKER to obtain this number prior to returning goods for any reason. There is a 15% re-stocking fee for all returned items. BAKER is not liable for any shipping.


NOTE: Limited warranty does not cover labor or other costs or expenses incidental to the repair and or replacement of BAKER products.This warranty does not apply if one or more of the following situations is judged by BAKER to be relevant: BAKER OEM transmissions ; (these are subject to the OEM manufacturers warranty only), Improper installation , accident, modification (including but not limited to use of unauthorized parts, transmission oils or lubricants), racing, high performance application, mishandling, misapplication, neglect (including but not limited to improper maintenance), or improper repair.BAKER shall not be liable for any consequential or incidental damages arising out of or in connection with a BAKER transmission assembly, transmission kit, component or part. Consequential damages shall include without limitation, loss of use, income or profit, or losses sustained as the result of injury (including death) to any person or loss of or damage to property.BAKER transmissions, transmission kits and accessories are designed exclusively for use in American V-Twin motorcycles. BAKER shall have no warranty or liability obligation if BAKER parts are used in any other application.If it is determined that a BAKER product has been disassembled during the warranty period for any reason, this limited warranty will no longer apply unless you were instructed to do so by a BAKER Drivetrain technician for diagnostic purposes.

The BAKER Cable-Type Side Cover
Move your mouse over image to zoom. Click to enlarge.
The BAKER Cable-Type Side Cover The BAKER Cable-Type Side Cover The BAKER Cable-Type Side Cover
